KIT100/150C | 100/150Hrs maintenance kit for Cosmos300

Information

KIT100/150C 100/150Hrs maintenance kit for Cosmos 300 – Genuine Vittorazi Motors Parts

The KIT100/150C contains all of the parts required to do both the 100 hour maintenance as well as the 150 hours maintenance on your Vittorazi Cosmos 300, all in one convenient package! Vittorazi maintenance kits also offer a better value as compared to ordering all of the required parts individually!

Please note this mainentance kit does not include the piston. Vittorazi recommends replacing the C010 piston at 150hrs with the piston corresponding to your cylinder size (A,B, or C).

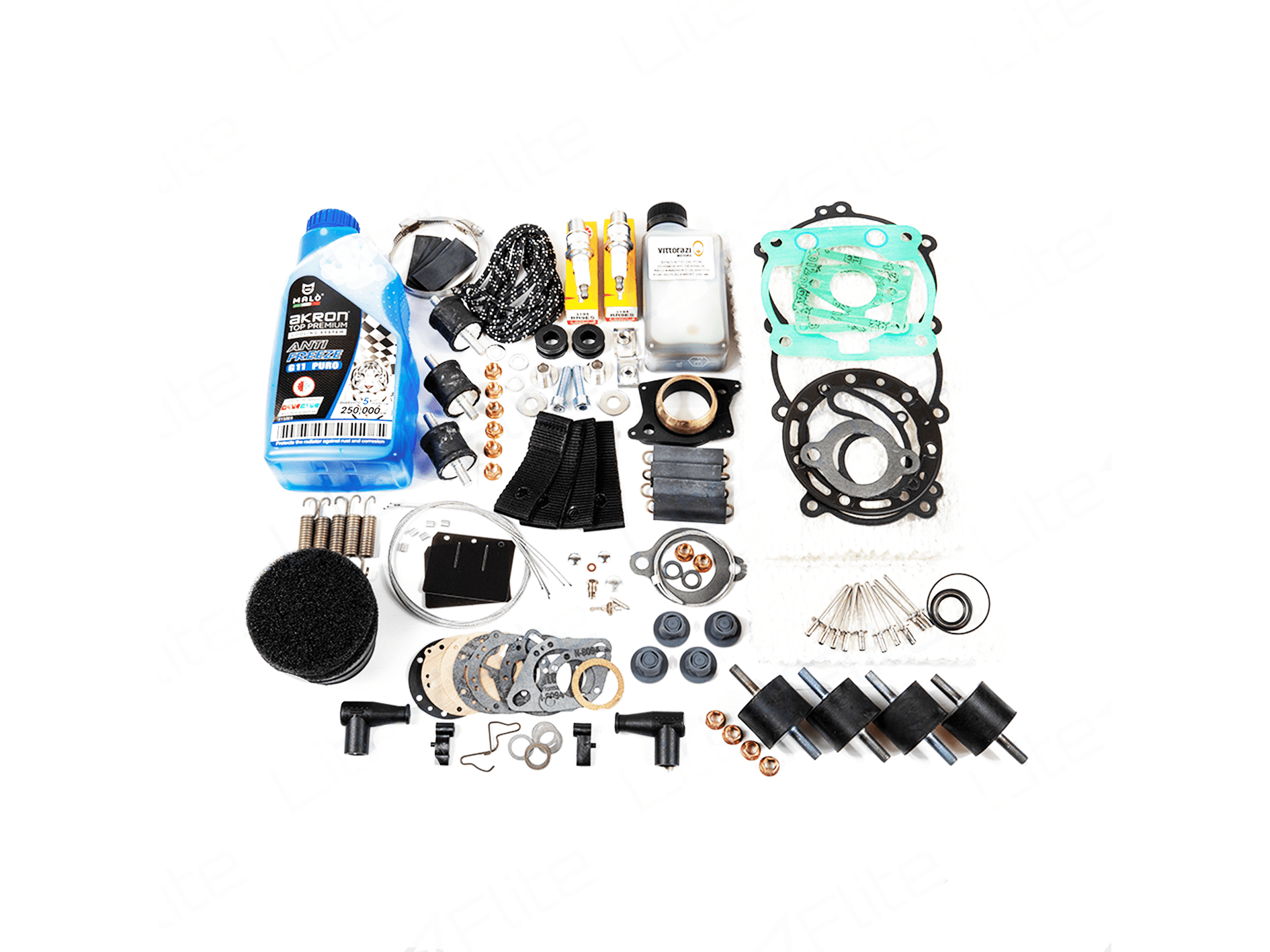

The KIT100/150C includes the following:

Qty 1 ACC085 Coolant for radiator 1 L
Qty 1 AT093a Air-box rubber manifold with incorporated sponge
Qty 1 C021 Antivibration mount 40 x 30 mm – M8 x 25 mm with Nuts (Set of 4)
Qty 1 C021f Security band (Set of 4)
Qty 1 C025 Complete series of gaskets and O-ring
Qty 1 C082 Reed valve petal (Set of 2)
Qty 1 C097 Series membranes and gaskets Tillotson
Qty 1 C120 Oil for reduction gear, 250ml
Qty 1 C140 Silencer fixing kit
Qty 1 C151 Antivibration mount 30 x 30 mm 15/20 mm (Set of 3)
Qty 1 C159 Set of 2 noise absorbent material with Rivets
Qty 1 C201 Exhaust flange, with assembled Bushing 40/50 hours and Springs
Qty 4 M020 Spark plug NGK BR9ES
Qty 2 M031a Spark-plug cap (Selettra)
Qty 1 M043 Starter rope 2,20 meters
Qty 2 M094 Fixing band 50-70 mm
Qty 1 M139 Exhaust spring (Set of 5)
Qty 1 MP055k Kit Plastic hook (Set of 2) with Shim washers 12 x 18 mm (Set of 6) and Elastic ring
Qty 4 MP093d Snaplock female Ø 16 mm, grey
Qty 1 MP140 Heat shrinkable tubing (Set of 5)
Qty 1 MP141 Security cable 45 cm with aluminum clamp (Set of 5)

For any additional help, please don’t hesitate to contact us!

For maintenance and installation help, please see the Vittorazi manuals and technical documents.
